Add new warnings to GCC with Python
I found myself getting annoyed lately with a certain C++ anti-pattern: functions which take string parameters by value unnecessarily. The pattern itself isn’t a huge sin, and can have legitimate uses, but often functions would be just as happy with a string const& parameter, so copying it is a waste. No matter how the optimized string copy is, it won’t be better than a simple reference. Then throw more complex classes in the mix, and it would be good have a tool or diagnostic to tell when things are copied unnecessarily.
My first thought was to try this with elfutils libdw, or perhaps Dyninst SymtabAPI. It shouldn’t be that hard to iterate debuginfo for all the functions in a binary, and scan their parameters for direct class or struct types. I may still try this, actually, just as a case study for relatively simple example code. However, one of my coworkers suggested this idea would also work as a GCC plugin, so I tried it with gcc-python-plugin and found it embarrassingly easy. Voila!
import gcc
def on_pass_execution(p, fn):
# This pass is called fairly early on, per-function, after the
# CFG has been built. Skip every other pass.
if p.name != '*warn_function_return':
return
# I don't want notices for system headers.
# (is data like -isystem available?)
if fn.decl.location.file.startswith('/usr/'):
return
for parm, parmtype in zip(fn.decl.arguments,
fn.decl.type.argument_types):
if type(parmtype) == gcc.RecordType:
gcc.inform(parm.location,
'parameter type is not trivial')
gcc.register_callback(gcc.PLUGIN_PASS_EXECUTION,
on_pass_execution)
I started with the hello-world example, which already shows how to hook every function and extract more info than I even need. You’ll see that my case is even shorter in code, just checking the rough parameter type and issuing a notice. In practice it looks like this:
$ cat test.cc
#include <string>
size_t len(std::string s) { return s.size(); }
$ gcc-with-python3 script.py -c test.cc
test.cc: In function ‘size_t len(std::string)’:
test.cc:2:24: note: parameter type is not trivial
size_t len(std::string s) { return s.size(); }
^
I got this working with my whole build just by tweaking make options:
make CXXLD=g++ CXX="gcc-with-python3 /path/to/script.py"
Pull that into Vim quickfix, and I’m now easily browsing through every instance of non-trivial parameter copies in my code!
Part of the reason this was so easy was that I just flag every direct class/struct parameter, regardless of whether an option like const& would fit. This might be a little more intelligent if it scanned the CFG to see if the parameter really could be constant. It could also relax a bit on what’s flagged, perhaps just types for which std::is_trivially_copyable returns false in C++11. But for just scratching an itch, I’m amazed at how quick this simple plugin was to write.
SystemTap monitoring ptrace activity
I’d like to present a real and hopefully interesting example: how I recently used SystemTap to help with a complex ptrace issue. I was trying to track down an issue which involved multiple processes, and one of those was ptrace-attached to the other. In this situation, it would be perfectly fine to attach a debugger to the controlling process, but since ptrace is exclusive, I could not have attached again to that child process. Where traditional tools are left out, SystemTap may still help!
For my problem, in a little more detail, the ptracer process was watching for forks in the child. When a fork occurred, it executed a bit of instrumentation in both the original child and the new fork, then allowed both to continue. My bug was that the fork return value in the caller (as seen after the instrumentation) should have been the new PID, but it was always 56. A bit of corruption, it seemed, but always the same 56. Except, even more strangely, on some systems once auditd started, this changed to -1 with errno set to ENOSYS, despite the fork having truly succeeded.
My “aha!” moment was when I realized that on x86_64, SYS_clone happens to be 56, and further the syscall number on entry and its return value on exit both use the same %rax register. The ptrace controller needs to save and restore register state when running instrumentation, so it seemed likely here was the culprit somehow. Now this is something easily traced with SystemTap, even across processes and kernel activity. I only needed to watch fork, ptrace, and the wait4 that gets ptrace signals. Here’s that script I used:
# NB: TASK_COMM_LEN is 16, including '\0', so truncate to 15 chars
global mutator = "test_driver"
global mutatee = "test4_2.dyn_g++"
function trace(str) {
printf("%16s[%5d] %s\n", execname(), pid(), str)
}
probe syscall.fork {
if (execname() == mutatee)
trace(sprintf("-> %s (%s)", name, argstr))
}
probe syscall.fork.return {
if (execname() == mutatee)
trace(sprintf("<- %s = %s", name, retstr))
}
global ptrace_watch
probe begin {
ptrace_watch[7] = 1 # PTRACE_CONT
ptrace_watch[12] = 1 # PTRACE_GETREGS
ptrace_watch[13] = 1 # PTRACE_SETREGS
ptrace_watch[24] = 1 # PTRACE_SYSCALL
}
probe syscall.ptrace {
if (execname() == mutator && request in ptrace_watch)
trace(sprintf("%s (%s)", name, argstr))
}
probe syscall.wait4.return {
if (execname() == mutator)
trace(sprintf("%s = %s %s", name, retstr, status_str))
}
This is a relatively simple script, with just a little logic to filter the events down, and then it prints a trace at each point. Even with that filtering, I got more output than I care to flood in a blog post, but here’s the excerpt of the bug in action:
test4_2.dyn_g++[18304] -> fork () test_driver[18287] wait4 = 18305 WSTOPSIG=SIGSTOP test_driver[18287] wait4 = 18304 WSTOPSIG=SIGTRAP | PTRACE_EVENT_FORK << 8 test_driver[18287] ptrace (PTRACE_GETREGS, 18304, data=0x7fff291f0990) test_driver[18287] ptrace (PTRACE_CONT, 18304, SIG_0) test4_2.dyn_g++[18304] <- fork = 18305 test_driver[18287] wait4 = 18304 WSTOPSIG=SIGTRAP test_driver[18287] ptrace (PTRACE_SETREGS, 18304, data=0x7fff291f09c0)
This showed me that my guess was pretty much on the mark! I have a pet peeve against blind bug fixes, where some programmers will just take a guess at a problem and make changes, without really confirming that they’ve understood what’s happening. So it’s gratifying to me to see this real data showing how things went down. There’s the fork entered and returned in one process, including the proper return value (at least from the kernel perspective). The PTRACE_EVENT_FORK came during the middle of the fork, so when the ptracer grabbed current registers, %rax was still the entry value. The fork returned the right value to the temporary instrumentation path (that didn’t care about it). When the ptracer went to restore registers to get back to where fork should have returned, it would be restoring the syscall’s entry value — 56.
It’s a tricky situation, made trickier by the fact that I could reproduce the bug on RHEL5 and Fedora, but RHEL6 was unaffected. But with the same script, I could see that RHEL6 waited until after the internal kernel fork returned to deliver the PTRACE_EVENT_FORK stop, so the PTRACE_GETREGS just happened to be from a more convenient place. (The behavior difference is due to utrace, which is a whole can of worms intertwined with ptrace internals.)
My plan to fix it was to introduce a PTRACE_SYSCALL call after the event, so the kernel fork would complete but still trap before returning to userspace. As with tracking down the bug, the proof of a fix requires data too:
test4_2.dyn_g++[19488] -> fork () test_driver[19471] wait4 = 19488 WSTOPSIG=SIGTRAP | PTRACE_EVENT_FORK << 8 test_driver[19471] ptrace (PTRACE_SYSCALL, 19488, SIG_0) test4_2.dyn_g++[19488] <- fork = 19489 test_driver[19471] wait4 = 19489 WSTOPSIG=SIGSTOP test_driver[19471] wait4 = 19488 WSTOPSIG=TRACESYSGOOD test_driver[19471] ptrace (PTRACE_GETREGS, 19488, data=0x7fff07d26e90) test_driver[19471] ptrace (PTRACE_CONT, 19488, SIG_0) test_driver[19471] wait4 = 19488 WSTOPSIG=SIGTRAP test_driver[19471] ptrace (PTRACE_SETREGS, 19488, data=0x7fff07d26ec0
That’s a better looking sequence of events, and indeed the fork is finally showing the proper PID even after instrumentation. It worked on all systems which previously reproduced the bug, and even the unaffected RHEL6 was fine with the added wait. Fixed and confirmed!
Finally, I should admit, the problem was not so cleanly found and resolved as I might make it sound. Like many debugging sessions, I went through a lot steps before I’d narrowed it down this far. I read a lot of both application code and kernel code, and I wrote quite a few one-off SystemTap scripts watching behavior in different areas. (Perhaps a journal of this process might be interesting some other time…) So I don’t mean to imply that immediately SystemTap magically shined a light right where I needed to look — but it did make it possible for me to see into an otherwise opaque problem.
Defining your own Git commands
When you use a command prompt long enough, you’ll find yourself repeating some common command sequences. If you value your time, you’ll probably start saving shell aliases and even full shell scripts to simplify these things.
The same is true with using Git: you’ll probably find yourself repeating some long commands, and wish for an easier way. You may also just have some tricky Git recipes that you want to remember. Well sure enough, you can write Git aliases too, as well as add your own scripts as git subcommands. The Git wiki has a pretty good page describing aliases, so I’ll let you read that, and there are examples too. Here are a few more examples that I felt are worth sharing.
up = remote update
This first one is just pure laziness. A git remote update is the same as git fetch for all configured remotes, and now git up can do the same with less typing.
new = log ..@{upstream}
pend = log @{upstream}..
These show how the current branch differs from the upstream tracking branch (often origin/master, but could be anything). My version of git new is different than the example on the Git wiki, instead showing what commits you’ve fetched but not yet pulled/merged. Then git pend is the opposite, showing what commits are pending to go out in a push.
log1 = log --abbrev-commit --pretty=oneline logf = log --pretty=fuller
These are just shortcuts for formatted logs; git log1 for one line per commit, and git logf for the fuller format that includes committer info (instead of just author). The log1 options could also be condensed down to --oneline these days, but that wasn’t available when I first wrote this alias.
lol = log --graph --decorate --pretty=oneline --abbrev-commit lola = log --graph --decorate --pretty=oneline --abbrev-commit --all
More logging tricks, and for these I’ll give credit to the blog where I found them. These add ASCII-art graph lines to help visualize merges, and they also label tags and branch heads.
show-patch = format-patch --stdout -1
This works like git show, dumping the most recent commit on stdout, but with format-patch it uses email-style headers. This makes it easier to elsewhere use git am on that patch with preserved commit message, author, and date. It also includes binary diffs by default.
make = !test -d \"$(git rev-parse --show-toplevel)\" && make -C \"$_\"
This runs make from the top of the git directory, no matter what your current working directory is, so you can just git make anywhere. The test -d beforehand is just a precaution to make sure you’re really within a git path, otherwise you’ll get both a git error and make complaining of an empty -C argument.
Once you start getting into complicated “!...” sequences, it may make sense to break it out into its own file. As long as you name it starting with “git-“, like git-unique-abbrev in my last post, and save it somewhere in your PATH, then you can call it as you would any other git command like git unique-abbrev. Another good example is this git merge-ff script on StackOverflow, which lets you safely fast-forward any branch without affecting your current work tree.
The last one I’ll leave you with is back to shell aliases:
alias gcd='test -d "$(git rev-parse --show-toplevel)" && cd "$_"'
This changes your current directory to the top of the git tree, using the same mechanism as I did for git make. This has to be a shell alias, not a git command or a script, because it’s changing the working directory of the shell. Don’t forget cd - to jump back too.
How short can Git abbreviate?
How short can a Git hash be abbreviated? A full SHA-1 hash is 160 bits, 40 hex characters, which is a bit long to talk about and retype when you’re not just copy-pasting. Therefore most people will use just the first few characters to refer to commits, but how safe is this?
I know of a couple posts where Linus Torvalds laments Git’s default hash abbreviation of 7 characters. This gives you 28 unique bits, almost 270 million possibilities, which seems like it should be plenty. Even with the Linux kernel, one of the biggest repositories I know, there are fewer than 4 million objects. However, since hash functions like SHA-1 have approximately random distribution, you easily can and will run into the birthday problem at this level.
As Linus noted in that second link, Git will now make sure that the abbreviated hashes it prints are currently long enough to be unique, but that’s no guarantee against future collisions. He recommends kernel developers use 12 characters, which got me curious how to evaluate how much headroom this leaves for any given repository. One way to get a basic idea is to ask Git to abbreviate all commit objects as much as possible. For example, on linux.git:
$ git rev-list --all --abbrev=0 --abbrev-commit | wc -L 11
To see which commits require 11-character abbreviations:
$ git rev-list --all --abbrev=0 --abbrev-commit | grep -E '.{11,}'
8b82547e33e
3ee5014185b
21949f00a02
And indeed, if you try a command like git show on any of those with just 10 characters, it will complain that this is ambiguous. Notice that none of those 3 are near each other though, which means that the collision must have been with some other object type, like a tree or blob. In fact, git log is happy with 10 characters on these, as it only has to disambiguate among revisions.
How about a histogram of commit abbreviation lengths:
$ git rev-list --all --abbrev=0 --abbrev-commit |
awk '{ a[length] += 1 } END { for (len in a) print len, a[len] }'
5 1771
6 286066
7 106897
8 7899
9 494
10 27
11 3
In fact, most commits here are just fine with that 7-character abbreviation, even a few as low as 5, but there’s that tail end of commits which require up to 11. So 12 does seem like a reasonable suggestion to leave some headroom, but I don’t think it’s quite the “later generations” headroom that Linus wanted.
This is all fine for commit objects, but I didn’t find a way for Git to print this minimized abbreviation on all object types. So, I wrote a quick script to run through various lengths:
#!/bin/bash
# git-unique-abbrev
OBJECTS="$(mktemp)"
git rev-list --all --objects | cut -c1-40 | sort >"$OBJECTS"
printf "%d objects\n" $(wc -l <"$OBJECTS")
for abbrev in $(seq 4 40); do
DUPES="$(mktemp)"
uniq -D -w $abbrev <"$OBJECTS" >"$DUPES"
count=$(wc -l <"$DUPES")
acount=$(uniq -w $abbrev <"$DUPES" | wc -l)
printf "%2d: %d / %d\n" $abbrev $count $acount
test $count -eq 0 && cat "$OBJECTS"
mv "$DUPES" "$OBJECTS"
test $count -eq 0 && break
done
rm -f "$OBJECTS"
On linux.git:
$ git-unique-abbrev 3253824 objects 4: 3253824 / 65536 5: 3107326 / 854621 6: 573758 / 277590 7: 39577 / 19748 8: 2609 / 1304 9: 160 / 80 10: 12 / 6 11: 2 / 1 12: 0 / 0 d597639e2036f04f0226761e2d818b31f2db7820 d597639e203a100156501df8a0756fd09573e2de
Each line is reporting how many total objects are ambiguous at that abbreviation and how many such abbreviations there are. The minimum Git allows is 4, which is totally saturated in this repository — every object is ambiguous, and all 65536 possible prefixes are included. The default 7 does disambiguate most objects, but there’s still 1.2% remaining. At 8 characters, with 2609 objects and 1304 common prefixes, we can infer there’s even still a triplicate around. We really do require 12 characters now to disambiguate all objects. The last lines are the final set of duplicates, and git cat-file -t will tell you these are both tree objects.
For a probabilistic view, we can use the square approximation from Wikipedia:
d597639e203 result for 11 after all.
What’s the takeaway from all this? If you are a kernel developer, or use a Git repository of similar size, you should definitely set Git to core.abbrev of at least 12, and maybe more to have some real headroom. For smaller projects, you can try some of the commands above to see where you stand, but it may just be prudent for everyone to get used to using longer hashes everywhere. Finally, when you reference a Git hash for posterity, e.g. in another commit message, I’d recommend always using the full value.
Boot Time versus LVM Snapshots
Linux tip: LVM snapshots are a handy feature, but they will destroy your boot time if they diverge very far.
I do a lot of development and testing in virtual machines. Sometimes if I want to try something disruptive, I’ll do it in a clone of some base image. Using LVM snapshots makes it easy and quick to create the new image.
But recently I noticed my workstation was taking abnormally long to boot. The command “systemd-analyze blame” told me that fedora-storage-init.service alone was taking over two minutes. While I imagine this might happen occasionally with fsck, it certainly shouldn’t take so long every time.
I finally found out that the culprit was the LVM vgchange command which initializes the volumes, and apparently this can take quite a while with snapshots to enumerate the extents. I had a few old snapshotted machines I had used for testing, and the base images those had originated from had since diverged quite a bit due to simple update activity.
I didn’t need those tests anymore, so delete them and reboot — and I booted in only 15 seconds, which even includes a few seconds to enter the encryption passphrase! This is an order of magnitude faster — or rather, now I know the LVM snapshots were causing an order of magnitude slowdown.
Lesson learned, don’t keep LVM snapshots around for a long time. It’s too bad, because this capability is otherwise very useful…
Monitoring a CyberPower UPS in Fedora
I recently bought an HP MicroServer N40L for a small home/media server, and I chose to install pre-release Fedora 18 on it. Fedora is perhaps not the best choice for a server, but I’m quite familiar with it, and I enjoy the First aspect of that distro.
Anyway, I’m not doing anything terribly complicated with the server, but one of the things I found slightly tricky to set up was UPS monitoring. I have a CyberPower CP425HG connected via USB, and one of its fun “features” is that it resets the USB interface every 20 seconds if a driver has not connected. So before I even got any monitoring going, it was flooding the logs with disconnect/reconnect messages. Then when I tried to get Network UPS Tools to monitor it, I found it quite racy for the driver to connect while the UPS in a usable state.
So, here’s how I now have it configured, for my own reference and in case anyone else has similar issues. First is to simply install the tools with “yum install nut nut-client“. Then the NUT configuration files need a few basic additions, just added at the end of the existing files.
Added to /etc/ups/ups.conf:
[cps]
driver = "usbhid-ups"
port = "auto"
vendorid = "0764"
The specific “vendorid” is probably not actually necessary, but I chose to go ahead and restrict my configuration to the CyberPower vendor anyway.
Added to /etc/ups/upsd.users:
[nutmon]
password = CENSORED
upsmon master
and to /etc/ups/upsmon.conf:
MONITOR cps@localhost 1 nutmon CENSORED master
The username “nutmon” and its password don’t really matter for local use; it’s just used for the monitor to talk to upsd. You’d pay more attention if you were linking multiple machines’ UPS status over the network.
Now the tricky part is how to get NUT started at the right time as the system boots. A usual “systemctl enable” never seemed to catch the UPS at a sane point of its cycle during boot, and if missed the service just fails. So for that, I added a udev rule to start the service as soon as the UPS is detected.
Create a new file /etc/udev/rules.d/99-nut.rules:
SUBSYSTEM=="usb", ENV{DEVTYPE}=="usb_device", ATTR{idVendor}=="0764",
TAG+="systemd", ENV{SYSTEMD_WANTS}+="nut-server.service nut-monitor.service"
(Note, I wrapped that line for blogging, but the rule needs to be all on one line.)
When I look at the system boot logs, I am still getting one cycle where the UPS disconnects itself, and thus NUT fails to start too. But when the UPS connects the second time, udev kicks off the service again and I finally get proper UPS monitoring. Whew!
Procrastinating Timelord
If I could decide now to have done something earlier, then surely I would, for I’d be done with no more effort required. Maybe I should work on that.
And that concludes this Inane Friday Thought Experiment. Get back to whatever you weren’t doing…
Force zoomed workspaces in GNOME 3.2
I jumped the gun and updated to Fedora 16 in beta, which comes with GNOME 3.2 as well. With that comes a tweaked extension interface, so my prior hack needs modification. I do notice the new behavior that Florian mentioned last time, where the workspaces display now only hides if just one workspace is in use. So my previous annoyance is not so bad anymore, but I’ve grown accustomed having it always-zoomed, no matter what. Same as before, put these in ~/.local/share/gnome-shell/extensions/zoomWorkspacesDisplay@cuviper.com/:
metadata.json :
{
"shell-version": ["3.2"],
"uuid": "zoomWorkspacesDisplay@cuviper.com",
"name": "Zoom Workspaces Display",
"description": "Forces the workspaces display to always be zoomed",
"url": "https://blog.cuviper.com/",
"original-authors": "Josh Stone"
}
extension.js :
const Overview = imports.ui.main.overview;
const WorkspacesView = imports.ui.workspacesView;
function init(metadata) {}
let _saved_updateAlwaysZoom;
function enable() {
let p = WorkspacesView.WorkspacesDisplay.prototype;
_saved_updateAlwaysZoom = p._updateAlwaysZoom;
p._updateAlwaysZoom = function() {
this._alwaysZoomOut = true;
};
Overview._workspacesDisplay._alwaysZoomOut = true;
}
function disable() {
let p = WorkspacesView.WorkspacesDisplay.prototype;
p._updateAlwaysZoom = _saved_updateAlwaysZoom;
Overview._workspacesDisplay._alwaysZoomOut = false;
Overview._workspacesDisplay._updateAlwaysZoom();
}
I’m throwing it up on github too. If I need any more tweaks, I’ll just push there rather than blogging about it.
Dnsmasq fixing Comcast and VPNs
Twice in the last few weeks I’ve found uses of dnsmasq to solve DNS headaches: first to get around Comcast issues, and second to juggle both VPN and local hostnames.
Round 1 vs. Comcast: I discovered a while ago that I couldn’t get DNS resolution of a particular domain, elastic.org, nor its subdomains, though it would resolve just fine using a third-party DNS like Google’s 8.8.8.8. I couldn’t find any reason for this failure, the site’s admin had no idea, and of course Comcast support was no help. Surprise, rebooting my computer doesn’t help, when I just told you that every Windows and Linux computer I have fails even querying the server directly!
I hesitate to use Google DNS permanently, mainly for fear of losing CDN benefits, so for a while I just hard-coded the addresses in my hosts files. That’s not ideal in case they ever change, but the web is a fairly static place in practice. But then I discovered that dnsmasq has an option to route specific domains to specific DNS servers. My router is running DD-WRT with dnsmasq, so I just had to add “server=/elastic.org/8.8.8.8” to the config, and that one troublesome domain can now query through Google while the rest go through Comcast. That’s still a bit of a headache to maintain as I discovered other domains with a similar issue, but the problem was somewhat solved.
Round 2 vs. Comcast: Recently I also started having outright connection issues, which turned out to be dropping due to too-high transmit power negotiated in the modem. They replaced wiring to improve this, but in the process of troubleshooting they also “reactivated” my account. I noticed that the router was now getting different DNS servers from DHCP, so I tried elastic.org again and it worked! I manually queried both the old and new servers, and sure enough only the new was able to resolve that domain.
Turns out that the different servers came because the reactivation had also reset the Domain Helper feature, which I had previously opted-out of. The DNS that DHCP gives you depends on your choice in this setting. When the “helper” DNS is asked about an unknown name, it will give a bogus resolution to 208.68.143.50, which is a Comcast web server that informs you of the failure and does a web search instead. This is sort of OK for regular HTTP traffic, but it’s broken for many other uses. I’d rather have the proper NXDOMAIN, so the browser and any other clients can act accordingly. Dnsmasq comes to the rescue again with the option “bogus-nxdomain=208.68.143.50” in my config, and it will convert any name resolved to that address to a real NXDOMAIN instead. So faced with two broken Comcast DNS options, either unable to resolve good names or improperly resolving bad names, I’m able to eke out full and proper functionality again – yay!
[Update Aug 5, 2011] I just got another search page, argh! Turns out the IP I gave above is for search5.comcast.com, and this time I got search3.comcast.com, so this may be a bit of whack-a-mole. I scanned search[0-9] now, and got these three to set bogus-nxdomain: 207.223.0.140, 208.68.139.38, and 208.68.143.50.
Bonus round vs. VPN: I have several machines on my home network, and the router’s dnsmasq already does a fine job of resolving those local names. But my work computer uses openvpn to connect to the corporate network, and for that it needs the VPN’s DNS servers so it can resolve intranet names. I really want it to resolve names in both networks though. Then I discovered that NetworkManager has a configuration option “dns=dnsmasq“, which causes it to start a local dnsmasq with a “server=” option for the VPN’s domain. This means that only requests for the corporate domain will go through the VPN, and all others will use the local connection’s DNS, including the general internet and all my home machines. Perfect!
Force zoomed GNOME 3 workspaces

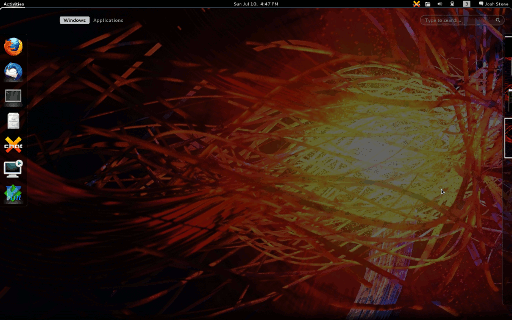

Almost a month ago now, I upgraded to Fedora 15, which brings with it GNOME 3. The UI changes are huge — oh, how the webs are screaming. One of the biggest issues is how very little is customizable. “How dare you question the brilliant designers!?! Surely they know what works best for you!” But it does have an extension system, so one can write in additional functionality. For adding features, this looks reasonable, but if you want to change features, get ready to monkey-patch into undocumented (and probably unstable) interfaces.
Well, there are plenty of longer rants out there, so I’ve said enough. When it actually comes down to it, I’m getting used to the changes, and it turns out that the shell doesn’t really matter so much. I don’t really feel like GNOME 3 is helping me be more productive, but it’s not hindering me either… faint praise.
I have identified a particular pain point though, so I decided I should share how I monkey-patched a solution. When you go into overview mode, there’s a partially hidden bar on the right side that displays your workspaces. Mouse over that, and it expands into view for you to choose your destination.
So far, so good — if that right side is hard edge for your mouse, then it’s easy to snap over there. However, if it’s not a hard edge, as with multiple monitors, then the hidden view is a difficult target. The gnome-shell developers did think of this, so they check the monitor positions:
js/ui/workspacesView.js :
_updateAlwaysZoom: function() {
this._alwaysZoomOut = false;
let monitors = global.get_monitors();
let primary = global.get_primary_monitor();
/* Look for any monitor to the right of the primary, if there is
* one, we always keep zoom out, otherwise its hard to reach
* the thumbnail area without passing into the next monitor. */
for (let i = 0; i < monitors.length; i++) {
if (monitors[i].x >= primary.x + primary.width) {
this._alwaysZoomOut = true;
break;
}
}
},
My issue is that I have an additional monitor on the right edge that GNOME 3 knows nothing about, thanks to Synergy. So I want to just force that _alwaysZoomOut = true, since in this case I really do know better. Thankfully, javascript is flexible enough that I can just replace that whole function with my forced values. Thus an extension is born:
metadata.json :
{
"shell-version": ["3.0.2"],
"uuid": "zoomWorkspacesDisplay@cuviper.com",
"name": "Zoom Workspaces Display",
"description": "Forces the workspaces display to always be zoomed",
"url": "https://blog.cuviper.com/",
"original-authors": "Josh Stone"
}
extension.js :
const Overview = imports.ui.main.overview;
const WorkspacesView = imports.ui.workspacesView;
function main() {
WorkspacesView.WorkspacesDisplay.prototype._updateAlwaysZoom = function() {
this._alwaysZoomOut = true;
};
Overview._workspacesDisplay._alwaysZoomOut = true;
}
Put those in ~/.local/share/gnome-shell/extensions/zoomWorkspacesDisplay@cuviper.com/, and reload the shell (Alt-F2, r). Now the workspace chooser will always be fully displayed whenever you’re in the overview.
Update: Florian commented that he’s already improved the way this is handled for the next version of gnome-shell. For my own interest, I tracked it down to this bug and commit. Thanks!
Josh Stone
